Tescom Battery Monitoring System brings an innovative perspective to battery monitoring solutions.

It is a harsh thing to ensure the providing a "safe working area" for batteries due to their nature. Every system requires another customized solution. With its powerful R&D team and hardworking production team, Tescom presents various solutions.

Ensure the maximum efficiency of the battery backup systems.

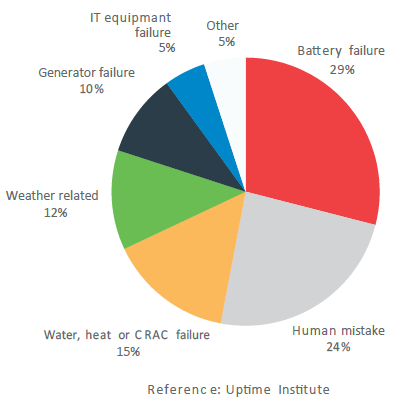

For those areas that don't have any tolerance for outages, every piece of the system must be high quality and efficient. Today’s world requires more power efficiency due to the environmental crisis. And, when it’s coming to the battery backup systems it has taken real importance to get the best of it. Tescom provides full control of the system by doing this it prolongs the lifespan of the whole system.

Tescom Battery Monitoring System – Architecture

• 1 Battery module for each battery
• 1 String Module for each string
• 1 Control Module for 4 String Modules
• 1 String Module can connect 120 battery modules
• Colorful and user-friendly interface of Tescom Software

System Components

Control Module with an Embedded Server

The Control Module is located at the system’s center. It is responsible for saving and processing the parameters transmited from the Battery and String Modules and sending these data to the Tescom Software. The Embedded Server provides easy commissioning. Tescom is installed in it.

Battery Module

The voltage, internal resistance, and temperature parameters of VRLA, VLA, or Ni-Cd type batteries are measured, and the measured parameters are transmited to the control unit via Modbus protocol.

String Module

The string current, ambient temperature, and humidity ratio are measured, and the measured parameters are transmited to the Control Module via Modbus protocol.

Tescom Software

Tescom Software can provide real-time monitoring of small to large-scale systems. It is responsible for Email and SMS notifications.

Measured Parameters

Tescom provides the most important measurement of a battery group, and to ensure the safety of the battery environment provides the ambient measurements.

Remarkable Features of UPS & Data Center Solution

Ni-Cd Solution For Industrial Applications

In the need for more reliable power backup systems in industrial areas, NiCd batteries can be used.

Hydrogen gas leaks and the level of electrolytes are assigned to the pain points of the chemical design of Ni-Cd batteries.

Due to hazardous environments, the need for extra protection of the battery system will arise.

Tescom's Ni-Cd Solution is specially designed to cover protection for a better environment for the batteries thus ensuring reliable power.

With constant monitoring of the most important parameters, Tescom is adding a “Halogen-free region” for Industrial Applica- tions. Furthermore, since Ni-Cd battery packs can have many more batteries than lead -acid packs, Tescom solves this issue with its “Sub-String Modules”. Sub-String Modules are responsible for lengthening the communication line in the battery packs which consist of more than 120 batteries.

Remarkable Features of Industrial Application Solution

• Up to 480 Ni-Cd batteries can be monitored with 1 BMS
• Halogen-free measurement and data cables
• Halogen-free Control Module Panel
• Halogen-free Battery and String Modules
• Hydrogen Gas Sensor (Optional)
• Low-Electrolyte Level Sensor (Optional)
• Ground Fault Detector (Optional)
• Display Screen (Optional)

Tescom is suitable for all kin ds of battery applications. With its innovative design perspective for both hardware and software parts, Tescom offers the best solution for the user’s requirements. Here is a list of Unique Selling Points of Tescom;

• Automatic addressing for Battery Modules.
• 3 LED sources for on-site detection.
• String-based configuration.
• 2 different levels for notification: warning & critical
• Every measurement is individual.
• 1,2V, 2V, 6V, and 12V solutions.
• Flexible and scalable setup based on each system.
• Collects the data in 30-second intervals.
• Remote access from anywhere via smartphone, or tablet.
• 10 years of historical data.
• Supports SNMP, Modbus RTU, Modbus TCP/IP, etc.
• Dry contacts can be utilized for 3rd party systems.
• E-mail and SMS notifications for multiple users.
• PDF or Excel reports in daily, monthly, and yearly intervals.
• Charge/discharge records per string.

Presenting the Best Solution to Cover Your Requirements - Voltage Balancing as an Option

Tescom's “Balancing” feature is used to keep the in dividual battery voltage at the desired charge voltage level for each string. In this way, the system ensures that all battery voltages in the string are close to equal. The bad effects of the batteries on eliminating the overcharging and inability to fully charge the batteries are prevented. This ensures that the string life is extended and its capacity is increased.
