Name: STS 3000 50 - 800 A
Brand: Tescom
Rating: 5 (250 reviews)

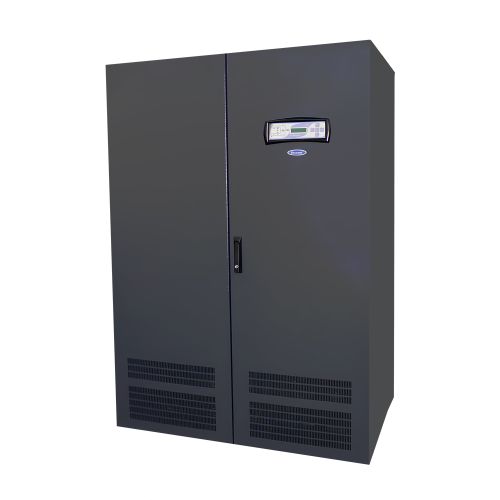

STS 3000

50 - 800 A

3 phase out, 3 & 4 poles static transfer switches

Tescom STS, allows instantaneous transfer of power sources to the load. If one power source fails, the STS switches to the back-up power source so fast that the load never recognizes the transfer made.

GENERAL SPECIFICATIONS

Increased power quality
Increased noise reduction
Power blackout protection
Power redundancy
Automatic static switching
Remote monitoring input power sources
Easy static and mechanical transfer to input sources
Remote management the power events
Power event logging
Output current capability up to 100% for short time
Manufactured according to EC Directive; EN62310
2 years warrantly

TECHNICIAL SPECIFICATIONS
Nominal current	50 A
ELECTRICAL DATA
Input voltage (Ph-Ph)	380/400/415 VAC 3P + N + G
Input voltage range	180-264 VAC (PH-N)
Input frequency	50Hz / 60Hz
Input frequency range (operation range adjustable)	48-65Hz (upper and lower limits adjustable)
Efficiency (at 100% load)	> %99
Input voltage THD	< %10
Transfer type	Break before make
Transfer methods available	Automatic / Manual / Remote
Transfer control	synchron with adjustable delay (non synchron) zero current (non synchron)
Transfer time	< 4 msn for synchronous sources < 10 msn for non-synchronous sources
Switching type	3 phase switching
Output current crest factor	3:1
Overload	0% - 100% continuous 101% - 150% 1 min. 151% - 200% 10 seconds > 200% 250 msec
Protections	Output overload and short circuit protection, Overtemperature protection, Backfeed protection, SCR fault protection
LCD panel and mimic	Standard
Communication	RS232 standard, RS485 optional, SNMP optional
TCP/IP connection	Optional
Dry contacts	4 programmable relay outputs
Two serial ports	Optional
Temperature sensor	Standard for internal cabinet temperature
ENVIRONMENTAL DATA
Cooling	Forced cooling (redundant fans)
Operating temperature	0°C - 40°C
Storage temperature	-10ºC - +50ºC
Relative humidity	90% max. (non condensing)
Protection class	IP20
Standards	EN 62310-1, EN 62310-2
Noise level	< 52 dBA
MECHANICAL DATA
Weight (kg)	139
Dimension (mm) HxWxD	1500x680x540

TECHNICIAL SPECIFICATIONS
Nominal current	100 A
ELECTRICAL DATA
Input voltage (Ph-Ph)	380/400/415 VAC 3P + N + G
Input voltage range	180-264 VAC (PH-N)
Input frequency	50Hz / 60Hz
Input frequency range (operation range adjustable)	48-65Hz (upper and lower limits adjustable)
Efficiency (at 100% load)	> %99
Input voltage THD	< %10
Transfer type	Break before make
Transfer methods available	Automatic / Manual / Remote
Transfer control	synchron with adjustable delay (non synchron) zero current (non synchron)
Transfer time	< 4 msn for synchronous sources < 10 msn for non-synchronous sources
Switching type	3 phase switching
Output current crest factor	3:1
Overload	0% - 100% continuous 101% - 150% 1 min. 151% - 200% 10 seconds > 200% 250 msec
Protections	Output overload and short circuit protection, Overtemperature protection, Backfeed protection, SCR fault protection
LCD panel and mimic	Standard
Communication	RS232 standard, RS485 optional, SNMP optional
TCP/IP connection	Optional
Dry contacts	4 programmable relay outputs
Two serial ports	Optional
Temperature sensor	Standard for internal cabinet temperature
ENVIRONMENTAL DATA
Cooling	Forced cooling (redundant fans)
Operating temperature	0°C - 40°C
Storage temperature	-10ºC - +50ºC
Relative humidity	90% max. (non condensing)
Protection class	IP20
Standards	EN 62310-1, EN 62310-2
Noise level	< 52 dBA
MECHANICAL DATA
Weight (kg)	145
Dimension (mm) HxWxD	1500x680x540

TECHNICIAL SPECIFICATIONS
Nominal current	150 A
ELECTRICAL DATA
Input voltage (Ph-Ph)	380/400/415 VAC 3P + N + G
Input voltage range	180-264 VAC (PH-N)
Input frequency	50Hz / 60Hz
Input frequency range (operation range adjustable)	48-65Hz (upper and lower limits adjustable)
Efficiency (at 100% load)	> %99
Input voltage THD	< %10
Transfer type	Break before make
Transfer methods available	Automatic / Manual / Remote
Transfer control	synchron with adjustable delay (non synchron) zero current (non synchron)
Transfer time	< 4 msn for synchronous sources < 10 msn for non-synchronous sources
Switching type	3 phase switching
Output current crest factor	3:1
Overload	0% - 100% continuous 101% - 150% 1 min. 151% - 200% 10 seconds > 200% 250 msec
Protections	Output overload and short circuit protection, Overtemperature protection, Backfeed protection, SCR fault protection
LCD panel and mimic	Standard
Communication	RS232 standard, RS485 optional, SNMP optional
TCP/IP connection	Optional
Dry contacts	4 programmable relay outputs
Two serial ports	Optional
Temperature sensor	Standard for internal cabinet temperature
ENVIRONMENTAL DATA
Cooling	Forced cooling (redundant fans)
Operating temperature	0°C - 40°C
Storage temperature	-10ºC - +50ºC
Relative humidity	90% max. (non condensing)
Protection class	IP20
Standards	EN 62310-1, EN 62310-2
Noise level	< 52 dBA
MECHANICAL DATA
Weight (kg)	165
Dimension (mm) HxWxD	1500x680x540

TECHNICIAL SPECIFICATIONS
Nominal current	200 A
ELECTRICAL DATA
Input voltage (Ph-Ph)	380/400/415 VAC 3P + N + G
Input voltage range	180-264 VAC (PH-N)
Input frequency	50Hz / 60Hz
Input frequency range (operation range adjustable)	48-65Hz (upper and lower limits adjustable)
Efficiency (at 100% load)	> %99
Input voltage THD	< %10
Transfer type	Break before make
Transfer methods available	Automatic / Manual / Remote
Transfer control	synchron with adjustable delay (non synchron) zero current (non synchron)
Transfer time	< 4 msn for synchronous sources < 10 msn for non-synchronous sources
Switching type	3 phase switching
Output current crest factor	3:1
Overload	0% - 100% continuous 101% - 150% 1 min. 151% - 200% 10 seconds > 200% 250 msec
Protections	Output overload and short circuit protection, Overtemperature protection, Backfeed protection, SCR fault protection
LCD panel and mimic	Standard
Communication	RS232 standard, RS485 optional, SNMP optional
TCP/IP connection	Optional
Dry contacts	4 programmable relay outputs
Two serial ports	Optional
Temperature sensor	Standard for internal cabinet temperature
ENVIRONMENTAL DATA
Cooling	Forced cooling (redundant fans)
Operating temperature	0°C - 40°C
Storage temperature	-10ºC - +50ºC
Relative humidity	90% max. (non condensing)
Protection class	IP20
Standards	EN 62310-1, EN 62310-2
Noise level	< 55 dBA
MECHANICAL DATA
Weight (kg)	195
Dimension (mm) HxWxD	1770x680x585

TECHNICIAL SPECIFICATIONS
Nominal current	250 A
ELECTRICAL DATA
Input voltage (Ph-Ph)	380/400/415 VAC 3P + N + G
Input voltage range	180-264 VAC (PH-N)
Input frequency	50Hz / 60Hz
Input frequency range (operation range adjustable)	48-65Hz (upper and lower limits adjustable)
Efficiency (at 100% load)	> %99
Input voltage THD	< %10
Transfer type	Break before make
Transfer methods available	Automatic / Manual / Remote
Transfer control	synchron with adjustable delay (non synchron) zero current (non synchron)
Transfer time	< 4 msn for synchronous sources < 10 msn for non-synchronous sources
Switching type	3 phase switching
Output current crest factor	3:1
Overload	0% - 100% continuous 101% - 150% 1 min. 151% - 200% 10 seconds > 200% 250 msec
Protections	Output overload and short circuit protection, Overtemperature protection, Backfeed protection, SCR fault protection
LCD panel and mimic	Standard
Communication	RS232 standard, RS485 optional, SNMP optional
TCP/IP connection	Optional
Dry contacts	4 programmable relay outputs
Two serial ports	Optional
Temperature sensor	Standard for internal cabinet temperature
ENVIRONMENTAL DATA
Cooling	Forced cooling (redundant fans)
Operating temperature	0°C - 40°C
Storage temperature	-10ºC - +50ºC
Relative humidity	90% max. (non condensing)
Protection class	IP20
Standards	EN 62310-1, EN 62310-2
Noise level	< 55 dBA
MECHANICAL DATA
Weight (kg)	205
Dimension (mm) HxWxD	1770x680x585

TECHNICIAL SPECIFICATIONS
Nominal current	300 A
ELECTRICAL DATA
Input voltage (Ph-Ph)	380/400/415 VAC 3P + N + G
Input voltage range	180-264 VAC (PH-N)
Input frequency	50Hz / 60Hz
Input frequency range (operation range adjustable)	48-65Hz (upper and lower limits adjustable)
Efficiency (at 100% load)	> %99
Input voltage THD	< %10
Transfer type	Break before make
Transfer methods available	Automatic / Manual / Remote
Transfer control	synchron with adjustable delay (non synchron) zero current (non synchron)
Transfer time	< 4 msn for synchronous sources < 10 msn for non-synchronous sources
Switching type	3 phase switching
Output current crest factor	3:1
Overload	0% - 100% continuous 101% - 150% 1 min. 151% - 200% 10 seconds > 200% 250 msec
Protections	Output overload and short circuit protection, Overtemperature protection, Backfeed protection, SCR fault protection
LCD panel and mimic	Standard
Communication	RS232 standard, RS485 optional, SNMP optional
TCP/IP connection	Optional
Dry contacts	4 programmable relay outputs
Two serial ports	Optional
Temperature sensor	Standard for internal cabinet temperature
ENVIRONMENTAL DATA
Cooling	Forced cooling (redundant fans)
Operating temperature	0°C - 40°C
Storage temperature	-10ºC - +50ºC
Relative humidity	90% max. (non condensing)
Protection class	IP20
Standards	EN 62310-1, EN 62310-2
Noise level	< 55 dBA
MECHANICAL DATA
Weight (kg)	230
Dimension (mm) HxWxD	1770x680x585

TECHNICIAL SPECIFICATIONS
Nominal current	400 A
ELECTRICAL DATA
Input voltage (Ph-Ph)	380/400/415 VAC 3P + N + G
Input voltage range	180-264 VAC (PH-N)
Input frequency	50Hz / 60Hz
Input frequency range (operation range adjustable)	48-65Hz (upper and lower limits adjustable)
Efficiency (at 100% load)	> %99
Input voltage THD	< %10
Transfer type	Break before make
Transfer methods available	Automatic / Manual / Remote
Transfer control	synchron with adjustable delay (non synchron) zero current (non synchron)
Transfer time	< 4 msn for synchronous sources < 10 msn for non-synchronous sources
Switching type	3 phase switching
Output current crest factor	3:1
Overload	0% - 100% continuous 101% - 150% 1 min. 151% - 200% 10 seconds > 200% 250 msec
Protections	Output overload and short circuit protection, Overtemperature protection, Backfeed protection, SCR fault protection
LCD panel and mimic	Standard
Communication	RS232 standard, RS485 optional, SNMP optional
TCP/IP connection	Optional
Dry contacts	4 programmable relay outputs
Two serial ports	Optional
Temperature sensor	Standard for internal cabinet temperature
ENVIRONMENTAL DATA
Cooling	Forced cooling (redundant fans)
Operating temperature	0°C - 40°C
Storage temperature	-10ºC - +50ºC
Relative humidity	90% max. (non condensing)
Protection class	IP20
Standards	EN 62310-1, EN 62310-2
Noise level	< 55 dBA
MECHANICAL DATA
Weight (kg)	240
Dimension (mm) HxWxD	1770x680x585

TECHNICIAL SPECIFICATIONS
Nominal current	600 A
ELECTRICAL DATA
Input voltage (Ph-Ph)	380/400/415 VAC 3P + N + G
Input voltage range	180-264 VAC (PH-N)
Input frequency	50Hz / 60Hz
Input frequency range (operation range adjustable)	48-65Hz (upper and lower limits adjustable)
Efficiency (at 100% load)	> %99
Input voltage THD	< %10
Transfer type	Break before make
Transfer methods available	Automatic / Manual / Remote
Transfer control	synchron with adjustable delay (non synchron) zero current (non synchron)
Transfer time	< 4 msn for synchronous sources < 10 msn for non-synchronous sources
Switching type	3 phase switching
Output current crest factor	3:1
Overload	0% - 100% continuous 101% - 150% 1 min. 151% - 200% 10 seconds > 200% 250 msec
Protections	Output overload and short circuit protection, Overtemperature protection, Backfeed protection, SCR fault protection
LCD panel and mimic	Standard
Communication	RS232 standard, RS485 optional, SNMP optional
TCP/IP connection	Optional
Dry contacts	4 programmable relay outputs
Two serial ports	Optional
Temperature sensor	Standard for internal cabinet temperature
ENVIRONMENTAL DATA
Cooling	Forced cooling (redundant fans)
Operating temperature	0°C - 40°C
Storage temperature	-10ºC - +50ºC
Relative humidity	90% max. (non condensing)
Protection class	IP20
Standards	EN 62310-1, EN 62310-2
Noise level	< 60 dBA
MECHANICAL DATA
Weight (kg)	340
Dimension (mm) HxWxD	1905x915x725

TECHNICIAL SPECIFICATIONS
Nominal current	800 A
ELECTRICAL DATA
Input voltage (Ph-Ph)	380/400/415 VAC 3P + N + G
Input voltage range	180-264 VAC (PH-N)
Input frequency	50Hz / 60Hz
Input frequency range (operation range adjustable)	48-65Hz (upper and lower limits adjustable)
Efficiency (at 100% load)	> %99
Input voltage THD	< %10
Transfer type	Break before make
Transfer methods available	Automatic / Manual / Remote
Transfer control	synchron with adjustable delay (non synchron) zero current (non synchron)
Transfer time	< 4 msn for synchronous sources < 10 msn for non-synchronous sources
Switching type	3 phase switching
Output current crest factor	3:1
Overload	0% - 100% continuous 101% - 150% 1 min. 151% - 200% 10 seconds > 200% 250 msec
Protections	Output overload and short circuit protection, Overtemperature protection, Backfeed protection, SCR fault protection
LCD panel and mimic	Standard
Communication	RS232 standard, RS485 optional, SNMP optional
TCP/IP connection	Optional
Dry contacts	4 programmable relay outputs
Two serial ports	Optional
Temperature sensor	Standard for internal cabinet temperature
ENVIRONMENTAL DATA
Cooling	Forced cooling (redundant fans)
Operating temperature	0°C - 40°C
Storage temperature	-10ºC - +50ºC
Relative humidity	90% max. (non condensing)
Protection class	IP20
Standards	EN 62310-1, EN 62310-2
Noise level	< 60 dBA
MECHANICAL DATA
Weight (kg)	520
Dimension (mm) HxWxD	1900x1250x850

Industrial Solutions

We design sustainable, safe and long-term solutions for the industry.View Products

Medical Solutions

Solutions that provide uninterrupted power for places where energy is used the most.View Products

Data Center & IT

Tescom uninterruptible power supply (UPS) systems ensure the operation time of large data centers and provide facility-wide protection for sensitive...View Products

Transportation Solutions

Power outages affecting traffic signals and Intelligent Transport Systems (ITS) not only create potentially dangerous conditions for transport users...View Products

Malls & Facilities

The use of Uninterruptible Power Supply in shopping malls, chain markets and retail sector.View Products

	Name	File Size
1)	STS 3000 SERIES (50 - 800 A)

	Name	File Size
1)	STS3000 Series - ( STS3050 - STS3100 - STS3150 - STS3200 - STS3250 - STS3300 - STS3400 - STS3600 - STS3800 - STS31000 ) - (07.2024) - (AGKK7308)

STS 3000

50 - 800 A

Areas of Usage

General Features

STS 3000

50 - 800 A

3 phase out, 3 & 4 poles static transfer switches

GENERAL SPECIFICATIONS

Models

Industrial Solutions

Medical Solutions

Data Center & IT

Transportation Solutions

Malls & Facilities

STS 3000

50 - 800 A

Areas of Usage

General Features

STS 3000

50 - 800 A

3 phase out, 3 & 4 poles static transfer switches

GENERAL SPECIFICATIONS

Models

Industrial Solutions

Medical Solutions

Data Center & IT

Transportation Solutions

Malls & Facilities

Product Catalogs

User Manuals
